£50.40

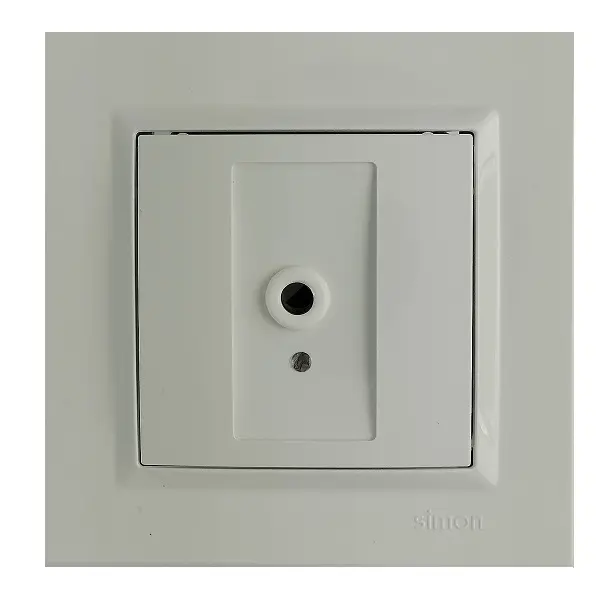

The 12V/10A sensor with a miniature lens is designed for indoor installation. It can be used for automatic lighting activation with intelligent controllers. The universal mechanical-electrical design allows the sensor to function as a standalone motion detection device, directly activating the lighting.
Detection angle: 20° Detection range: 0.25 – 3m (22°C) Input: 12V DC Operating temperature: -10°C~+25°C Operating humidity: <93%RH Operating range: NO Dusk sensor adjustment: < 3 Lux to 2000 Lux (smooth) Dimensions: 84x84x40 mm Load: up to 10A
Power supply voltage 12V DC Maximum load 10A Detection angle 20 degrees Hold time Smooth regulation from impulse 0.5 to 5 minutes Detection range Smooth non-linear regulation from 0.4m to 2m

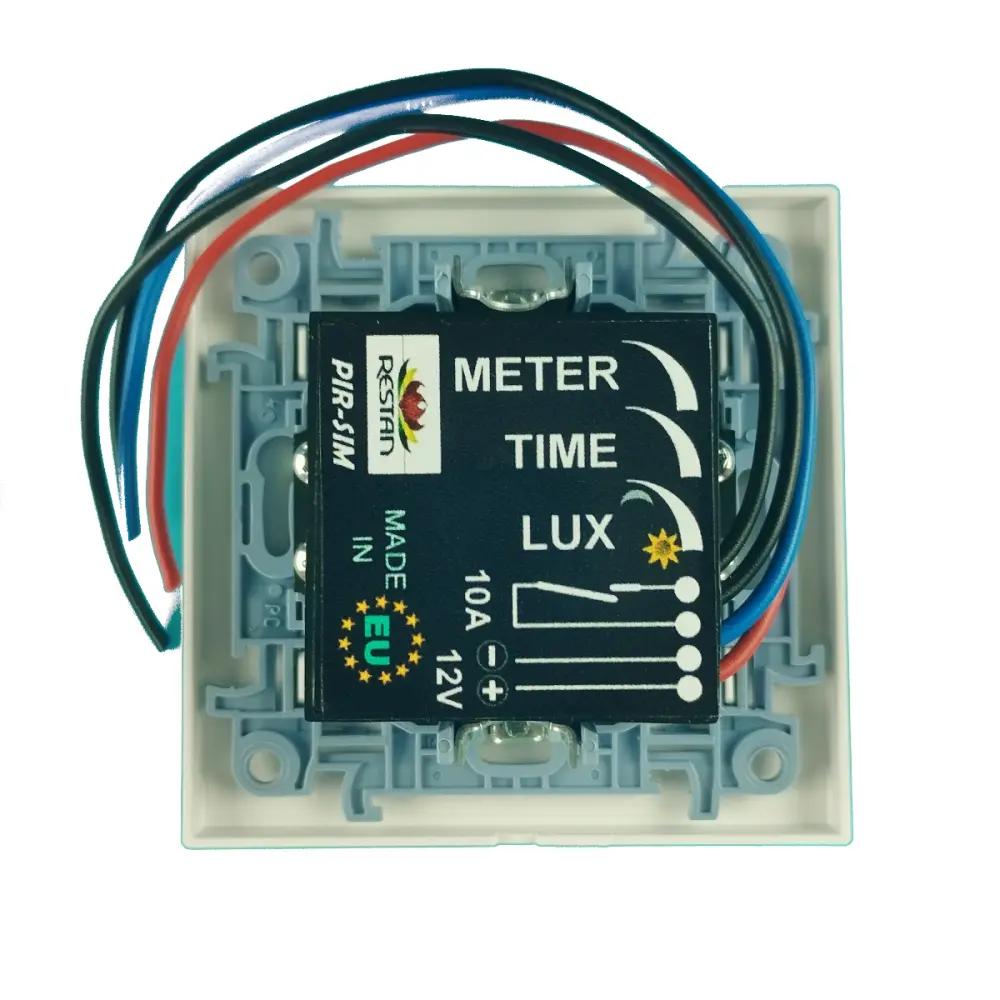

• Adjustment of activation based on external lighting intensity (LUX potentiometer) • Adjustment of relay hold time (TIME potentiometer) • Adjustment of detection range (METER potentiometer)
The potentiometers should be adjusted using a narrow screwdriver with a maximum blade width of 1.8mm.

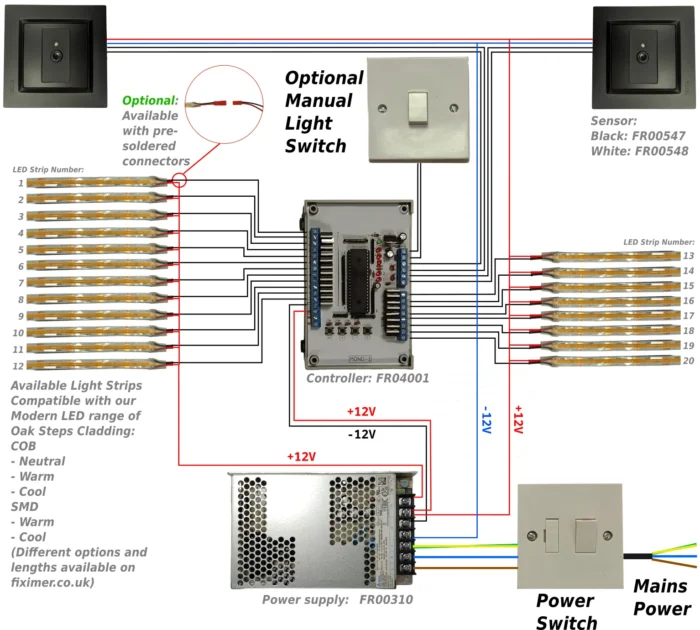

WARNING: Mechanical damage to the potentiometer is not covered by warranty. Application Methods On/off system using 12V LED strips/LED bulbs
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
