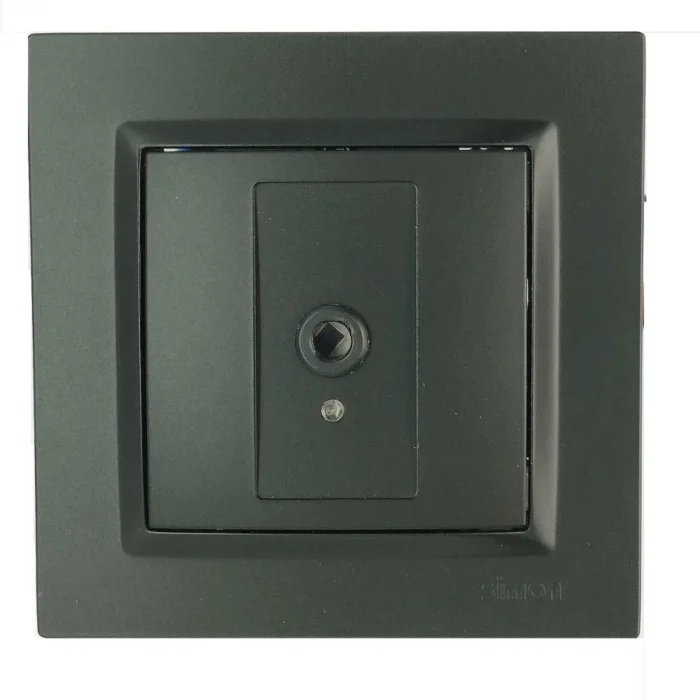

Motion/twilight sensor in one black for stairs – 10A – SIMON 10

Product Description

The 12V/10A sensor with a miniature lens is designed for indoor installation. It can be used for automatic lighting activation with intelligent controllers. The universal mechanical-electrical design allows the sensor to function as a standalone motion detection device, directly activating the lighting.

Parameters

Detection angle: 20°

Detection range: 0.25 – 3m (22°C)

Input: 12V DC

Operating temperature: -10°C~+25°C

Operating humidity: <93%RH

Operating range: NO

Dusk sensor adjustment: < 3 Lux to 2000 Lux (smooth)

Dimensions: 84x84x40 mm

Load: up to 10A

Technical Data

Power supply voltage 12V DC

Maximum load 10A

Detection angle 20 degrees

Hold time Smooth regulation from impulse 0.5 to 5 minutes

Detection range Smooth non-linear regulation from 0.4m to 2m

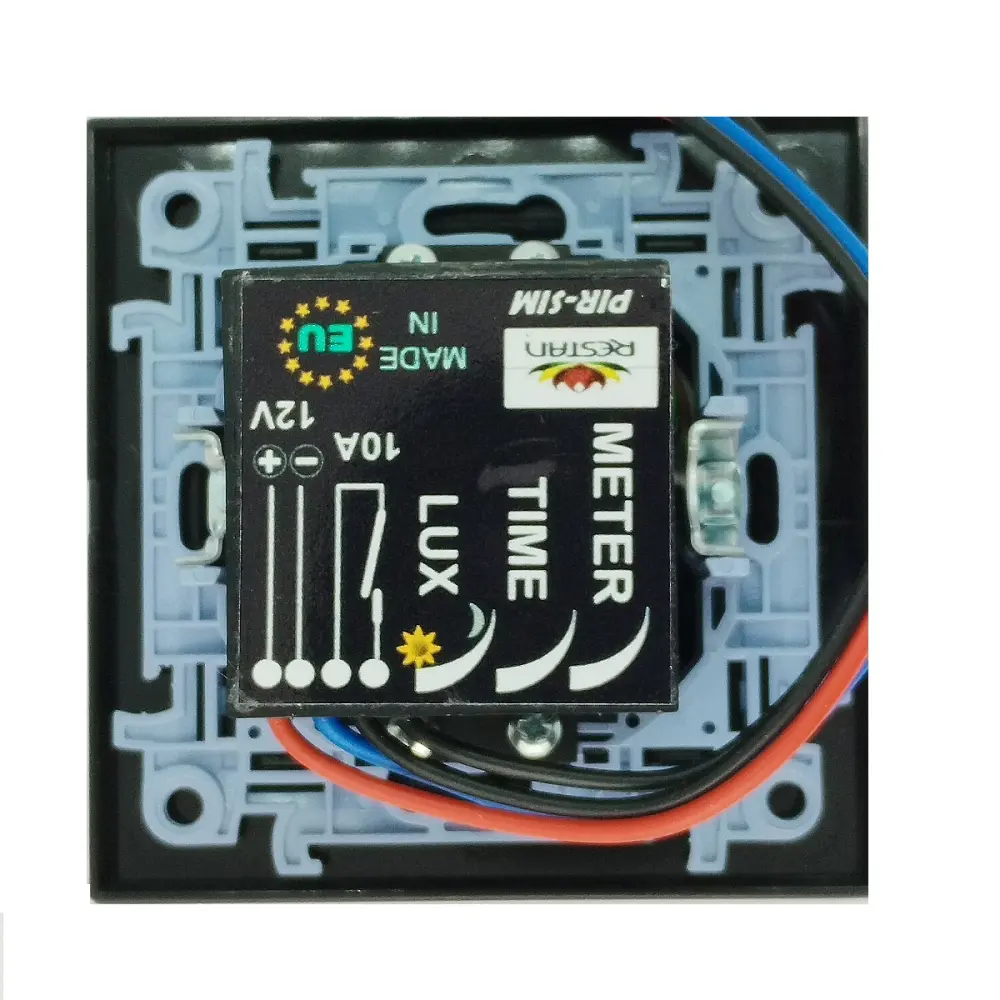

Functions

• Adjustment of activation based on external lighting intensity (LUX potentiometer)

• Adjustment of relay hold time (TIME potentiometer)

• Adjustment of detection range (METER potentiometer)

Sensor Activation Settings

The potentiometers should be adjusted using a narrow screwdriver with a maximum blade width of 1.8mm.

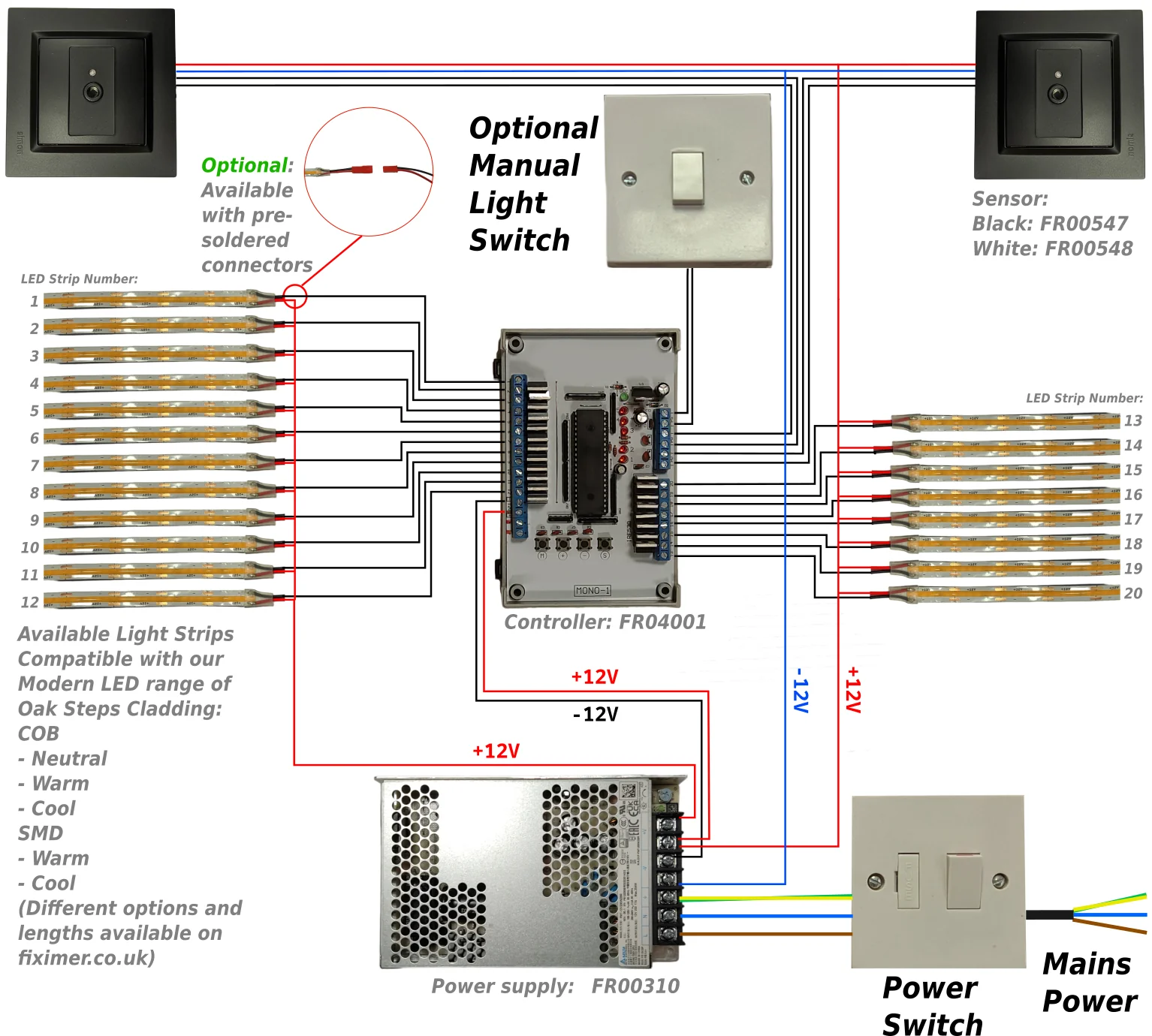

WARNING: Mechanical damage to the potentiometer is not covered by warranty. Application Methods On/off system using 12V LED strips/LED bulbs
