LED Strip COB NEON 1260 / 12 VDC / 1.2m – Cool White

LED Strip COB NEON 1260 / 12 VDC / 1.2m – Cold White

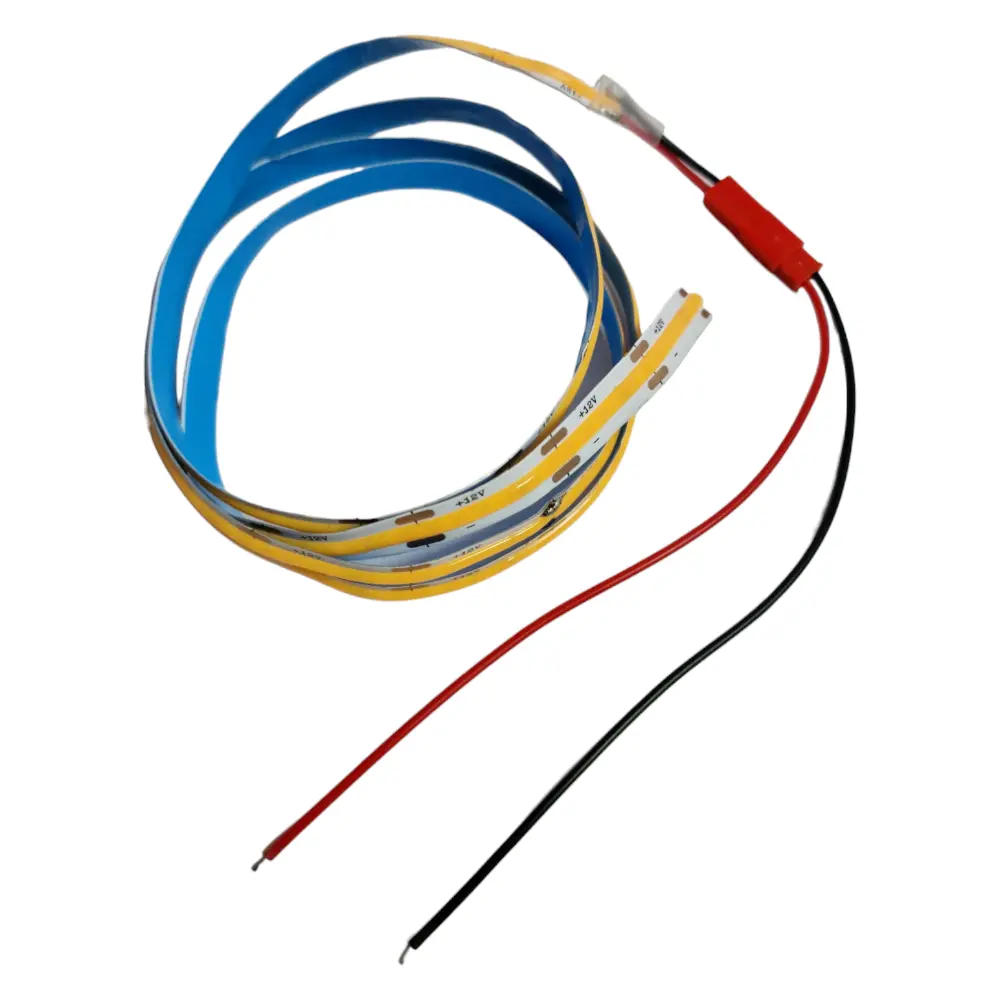

An innovative LED lighting strip utilizing COB technology. The connectors are applied to the tape base at a density of 528 LEDs per meter, achieving a continuous line of light without visible points. A 3M LSE self-adhesive mounting tape is applied to the back for easy installation.

The diodes in the tape offer high brightness and a wide viewing angle, with a long service life ensuring trouble-free operation. The tape can be cut into shorter sections, each consisting of 24 diodes, with a minimum length of 45.45mm. The strip has a width of 8mm and a length of 1.2m.

Ensure that the mounting location allows for proper heat dissipation, which is crucial to the strip’s lifespan. The surface for mounting should be clean, free from dust, and properly degreased.

This tape is designed for a 12V DC supply, with clear markings on the strip indicating proper power connections.

Important Note: Always avoid connecting the strip directly to a 230V network, as it could cause electric shock and immediate damage to the product. It’s recommended to use stabilized DC power supplies, with a 20% power margin compared to the tape’s nominal power.

Avoid installing LED strips in sections longer than 1.2m. For installations over 5m, ensure the tape is powered bilaterally or in multiples of 1.2m. This ensures the rated life of the strip and prevents voltage drops.

The IP20 protection class means this tape is suitable for indoor use in dry, dust-free environments.

Cutting the tape is only allowed at the marked cutting points; cutting it elsewhere will damage the strip. Always power off the tape before cutting.

Ensure the electrical installation where the strip is mounted includes short circuit, overload, and overvoltage protections.
